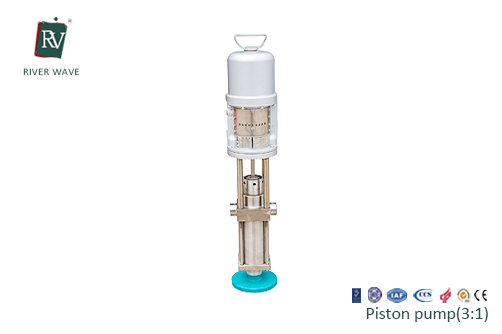

Piston Pump(3:1)
As the largest Piston Pump(3:1) manufacturer in china, River-Wave sales quality Piston Pump(3:1) to customers all over the world.
Product use:
In the paint,glue ,polyurethane coating automotive ,coating building coating ,oil transportation ,chemical food,pharmaceutical and other industries widely used ,is very suitable for viscous liquid ,corrosive liquid ,liquid containing solid particles or gas bubbles .A variety of materials ,adaptation of wide ,simple installation ,easy maintenance.
Products advantages:
1.after close of polishing and surface treatment of stainless steel surface,without damaging the material chemical.
2.Can handle a variety of high viscosity fluid ,strong corrosion resistance.
3.Less maintenance parts ,in the true sense to reduce the maintenance cost.
High mechanical life.
| 3:1 Piston pump | |
|---|---|
| Technical Specifications | |
| Max Working Pressure | 120psi(0.84Mpa ,8.4bar) |
| Max Flow Rate | 65gpm(68lpm) |
| Max .Suction Lift. | 6m |
| Max.Particle Allowed | 3.0mm |
| Max.Air Consumption | 34scfm(0.817m³/min) |
| Air Inlet size | 1/2in.npt(f)1/4in.bsp(f) |
| Fluid Inlet size | 1-1/2in.npt(f)1/4in.bsp(f) |
| Fluid Outlet size | 1in.npt(f)1/4in.bsp(f) |
| Connection | Female Thread/Flange |
| Body Material | SS304/SS306 |
| Ratio | 3:1 |
