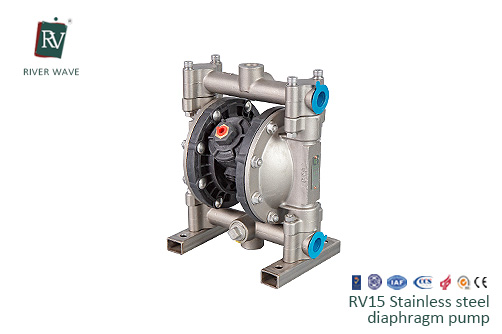

RV 15 Diaphragm Pump (Stainless steel)
River-Wave is the best RV 15 Diaphragm Pump(Stainless steel) manufacturer in China. Offering quality product to global customers
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
FEATURE
Features
• 1/2 in (12.7 mm) center- and end-porting
• No seals to leak or fail
• Quiet running — less than 85 dB with easy-to-use remote muffler capability for even lower noise levels
• High flow rates in a small, portable package
• External controller for optional remote operation
Typical Applications
• Machine lubrication servicing
• Cleaning fluids and detergents
• Plating and dip tanks
• Water treatment
Typical Fluids Handled
• Oil
• Water
• Most solvents
PARAMETER
| RV15 Diaphragm pump | |
|---|---|
| Technical Specifications | |
| Max Working Pressure | 100psi(0.7Mpa ,7bar) |
| Max Flow Rate | 15gpm(57lpm) |
| Max Reciprocating Speed | 400cpm |
| Max Suction Height (Dry Sucking) | 4.5m |
| Max Permitted Grain | 3/32in.(2.5mm) |
| Max.Air Consumption | 20gpm(10L/s) |
| Air Inlet size | 1/4in.npt(f) |
| Air Outlet size | 3/8in.npt(f) |
| Fluid Inlet size | 1/2 in.npt(f)or bspt(f) |
| Fluid Outlet size | 1/2 in.npt(f)or bspt(f) |
| Weight | Aluminum pump 4.5kg; Stainless Steel 6.8kg |

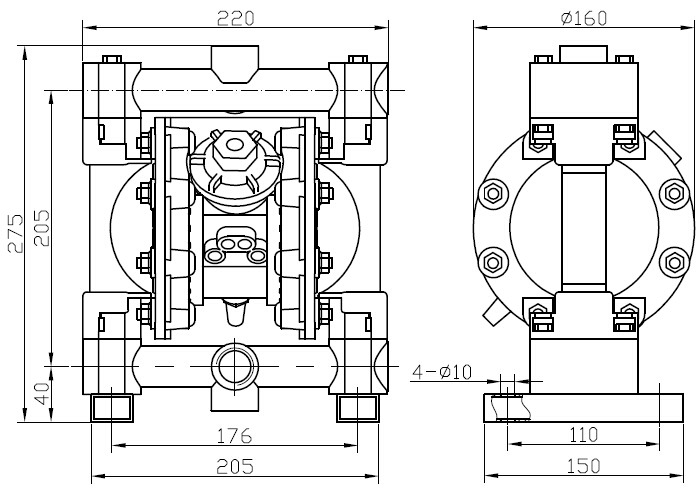

DIAGRAM
INSTALLATION
