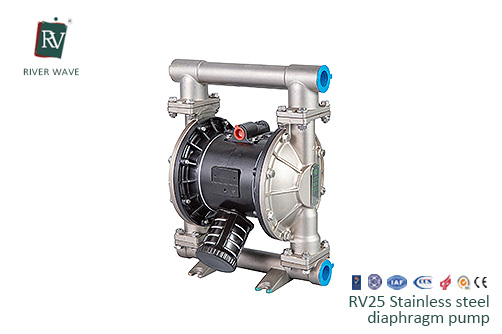

RV25 Diaphragm Pump (Stainless Steel)
Quality RV25 Diaphragm Pump (Stainless Steel) suppliers & exporter - all products made in China.
Features
• 1 in (25.4 mm) center- and end-porting
• High flow – 40 gpm (151 lpm) in a compact, portable size
• Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
• Epoxy-coated center section for corrosive environments
• Equipped with an effective and reliable air valve system
• External controller for optional remote operation
Typical Applications
• Drum fluid transfer
• Unloading fluids
• Chemical evacuation
• Ceramic glaze supply
• Dewatering and sump evacuation
• Tank and sump drainage
Typical Fluids Handled
• Chemicals
• Contaminated surface water
• Adhesives, varnishes, dispersions, solvents and stains
• Resins, latexes, wood preservative stains, concrete paints and primers
• Ceramic slips and slurries
| RV25 Diaphragm Pump | |
|---|---|
| Technical Specifications | |
| Max Working Pressure | 120psi(0.84Mpa ,8.4bar) |
| Max Flow Rate | 40 gpm(150 lpm) |
| Max Reciprocating Speed | 276cpm |
| Max Suction Height(Dry Sucking) | 5.48m |
| Max Permitted Grain | 4mm |
| Max.Air Consumption | 45scfm(22.5L/s) |
| Air Inlet size | 1/2 in.npt(f) |
| Air Outlet size | 1/2 in.npt(f) |
| Fluid Inlet size | 1 in.npt |
| Fluid Outlet size | 1 in.npt(f) |
| Weight | Aluminum pump 8.2kg Stainless steel 15kg |
