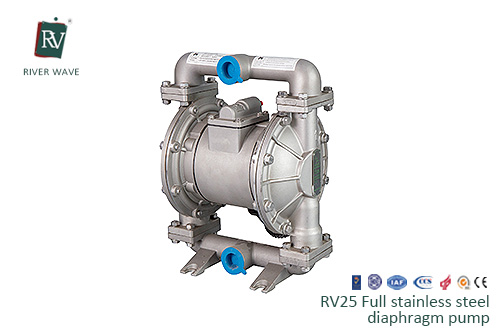

RV25 Diaphragm Pump (Full Stainless Steel)
As a specialist of RV25 Pneumatic Diaphragm Pump , River-Wave can offer you comprehensive selections of goods in this industry
Features
• 1 in (25.4 mm) center- and end-porting
• High flow – 40 gpm (151 lpm) in a compact, portable size
• Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
• Epoxy-coated center section for corrosive environments
• Equipped with an effective and reliable air valve system
• External controller for optional remote operation
• Stainless steel center section for corrosive applications
Typical Application
• Moving very flowable materials
• Evacuating food process mixing kettles
• Transferring ingredients from original containers to mixing tanks
• Evacuating liquid concentrates from shipping tankers to holding vessels
Typical Fluids Handled
• Fruit juice
• Sauce
• Wine
• Oil
• Pureed fruit
• Pastes and starches
• Corn syrup
• Mineral oil
• Lanolin alcohol
• Glycol
| RV25 Pneumatic Diaphragm pump | |
|---|---|
| Technical Specifications | |
| Max Working Pressure | 100psi(0.7Mpa ,7bar) |
| Max Flow Rate | 40 gpm(150 lpm) |
| Max Reciprocating Speed | 276cpm |
| Max.Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 4mm |
| Aax Air Consumption | 60scfm(1.7m³/min) |
| Air Inlet size | 1/2 in.npt(f) |
| Air Outlet size | 1/2 in.npt(f) |
| Fluid Inlet size | 1 in.npt |
| Fluid Outlet size | 1 in.npt(f) |
| Weight | Aluminum pump 8.2kg Stainless steel pump 15kg |
