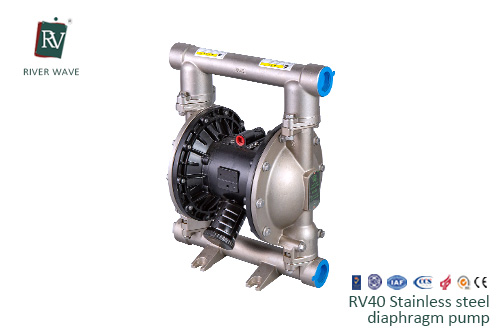

RV40 Diaphragm Pump (Stainless Steel)
As a specialist of RV40 Diaphragm Pump (Stainless Steel) , River-Wave can offer you comprehensive selections of goods in this industry
Features
• 1-1/2 in (38.1 mm) end-porting
• High flow – 100 gpm (378 lpm) in a compact, portable size
• Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
• Patented, high-reliability closed center air valve is online serviceable
• Lube-free operation
• Epoxy-coated air section
• External controller for optional remote operation
Typical Applications
• Filter press
• Tank stripping
• Bilge pumping
• Sand and ball mill pumping
• Oil transfer and oil skimming
• Chemical plating
Typical Fluids Handled
• Latex
• Abrasive fluids
• Slurries: petroleum, lime, clay, ferrite, salt/brine and pumice
• Sludge: secondary and clarifier
• Pottery slip
| RV40 Diaphragm Pump | |
|---|---|
| Technical Specifications | |
| Max Working Pressure | 120psi(0.84Mpa ,8.4bar) |
| Max Flow Rate | 118 gpm(446 lpm) |
| Max Reciprocating Speed | 200cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 5mm |
| Max. Air Consumption | 80scfm(40L/s) |
| Air Inlet size | 1/2 in.npt(f) |
| Air Outlet size | 1/2 in.npt(f) |
| Fluid Inlet size | 11/2 in.npt(f) |
| Fluid Outlet size | 11/2 in.npt(f) |
| Weight | Aluminum pump 16kg; Stainless steel 29.0kg Ductile Iton 33kg |
