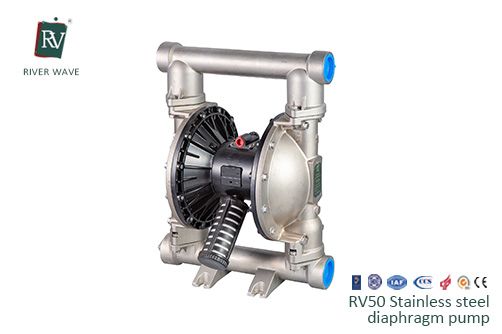

RV50 Diaphragm Pump (Stainless Steel)
As a specialist of RV50 Diaphragm Pump (Stainless Steel) , River-Wave can offer you comprehensive selections of goods in this industry
Features
• 2 in (50.8 mm) end-porting
• Larger ports for more flow – up to 150 gpm (568 lpm)
• Fluid pressure up to 120 psi (8.4 bar, 0.84 MPa)
• Patented, high-reliability closed center air valve is online serviceable
• Lube-free operation
• Epoxy-coated air section
• External controller for optional remote operation
Typical Applications
• Drum fluid transfer
• Bulk fluid supply
• Chemical evacuation
• Ground water and sump evacuation
• Waste fluid removal
• Tank and bilge drainage
• Slurry and sludge transfer
• Filter press feed
Typical Fluids Handled
• Alkalies and solvents
• Suspensions and dispersions
• Solvents, latex paints, varnishes, resins and adhesives
• Sludge and waste water
| Rv50 Diaphragm Pump | |
|---|---|
| Technical Specifications | |
| Max Working Pressure | 120psi(0.84Mpa ,8.4bar) |
| Max Flow Rate | 150 gpm(570 lpm) |
| Max Reciprocating Speed | 145cpm |
| Max Suction Height (Dry Suction) | 5m |
| Max Permitted Grain | 6mm |
| Max. Air Consumption | 140scfm(70L/s) |
| Air Inlet size | 1/2 in.npt(f) |
| Air Outlet size | 1/2 in.npt(f) |
| Fluid Inlet size | 2 in.npt(f) |
| Fluid Outlet size | 2 in.npt(f) |
| Weight |
Aluminum pump 29kg ; Stainless steel 47kg; Ductile Iton 66kg |
